FVP PULSE-B

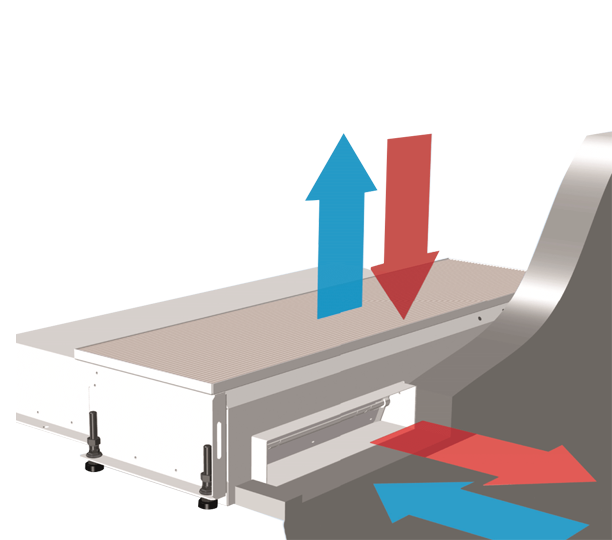

Decentralised ventilation unit for installation in double floors, supply/return air and heat retrieval for a high degree of comfort, economical operation with only one outside air opening.

FVP PULSE-B

All versions of the FVP family are able to imitate organic air movement thanks to the PulseVentilation system, in order to allow buildings to breathe “naturally” through a single facade opening. The very high heat and cold recovery that can be used around the year ensures an energy-efficiency that is unique in the industry. The transient flow with mixed displacement ventilation leads to a very high thermal comfort even at low supply air temperatures.

  • Decentralised heating, cooling, dehumidification and filtering with instationary ventilation through only a single facade opening
  • Unique economic efficiency through highly efficient heat recovery (heat recovery efficiency up to 90%) and demand-oriented control concepts
  • Draft-free and low-noise pulse flow up to 130m3/h (260m3/h in hybrid ventilation mode) with optimal ventilation effectiveness
  • Great effective area increases due to loss of central air conditioning unit, shafts, duct system and fire dampers
  • Lowest power consumption by minimised pressure loss (approx. 20W per unit), corresponding to 10% of the SFP specification of the German Energy Conservation Ordinance (EnEV)
  • Year-round heat recovery reduces the investment costs for central heat supply
