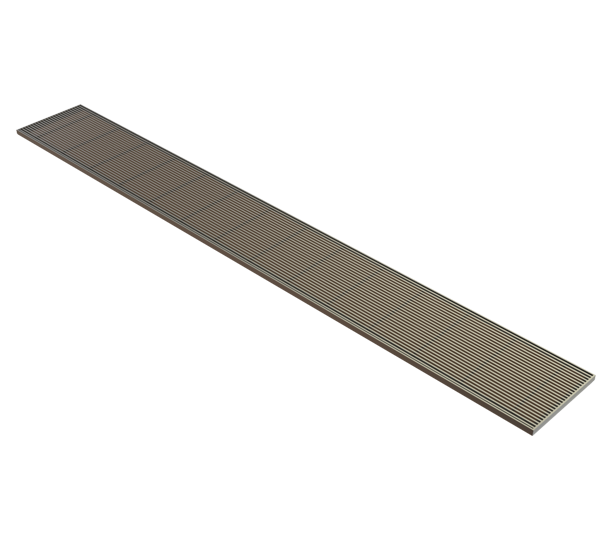

MB28SB
The MB28Sb can be used as a stand alone item in fresh air and exhaust air applications.
MB28Sb is the most popular option in our MB range. With a discrete blade size and pitch, this stainless steel grille is ideally suited for HVAC supply air applications when used in conjunction with our mini swirl range of diffusers. The MB28Sb can also be used as a stand alone item in fresh air and exhaust air applications. The very fine blade thickness and fine blade pitch results in a “low loss” terminal producing very low air resistance and noise generation.
- Air diffusion is characterised by “near laminar” flow from the face
- Face air velocities <3m/s
- Air flow rates over 200l/s/m (MB grille only)
- Air flow rates up to 100l/s/m in front of high induction slots
- Air flow rates up to 200l/s/m in front of mini-swirl diffusers (MS)
- Stainless steel finish as standard, with option paint finishes available
